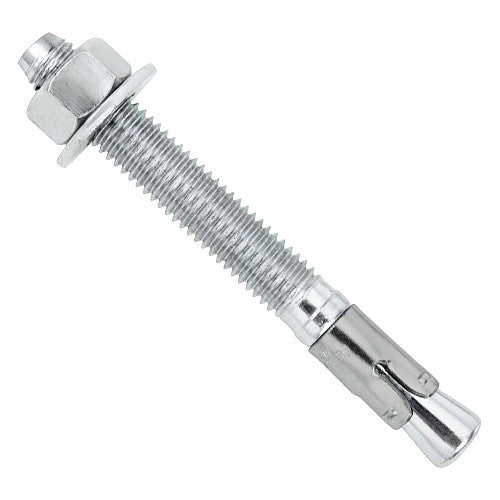

5/8" x 5" DeWalt Power-Stud+ SD2 Wedge Expansion Anchor | Carbon Steel Zinc Plated | 7433SD2-PWR (25/Pkg.)
Roll over image to zoom in Click on image to zoom
5/8" x 5" DeWalt Power-Stud+ SD2 Wedge Expansion Anchor | Carbon Steel Zinc Plated | 7433SD2-PWR (25/Pkg.)

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

5/8" x 5" DeWalt Power-Stud+ SD2 Wedge Expansion Anchor | Carbon Steel Zinc Plated | 7433SD2-PWR (25/Pkg.)

DeWaltSKU: 7433SD2-PWR
Price:
$54.57 $91.34per 25( $2.18 each)
Pieces 25
Measurement type Inch
Thread size 5/8
Diameter 5/8
Length 5
Material Steel
Grade Steel
Finish Steel
Drill bit size 5/8
Install torque 60 ft-lbs
Min edge distance 2-3/4
Min embedment 4-7/8
Min hole depth 5-1/4
Min spacing 6
Wrench size 15/16
Weight 1.98 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

Industrial-grade wedge anchors designed for permanent fastening into concrete and masonry substrates. The Power Stud+ SD2 wedge anchor delivers reliable expansion and robust holding power for heavy-duty fixtures in industrial environments.

Specs

  • Diameter: 5/8 inch
  • Embedment length: 5 inch
  • Finish: Zinc plated
  • Material: Carbon Steel

Features

  • Pre-assembled system: Ready-to-use wedge anchor that installs with standard tools, reducing field setup time.
  • Expansion mechanism: Wedge design activates within concrete or masonry to provide strong load transfer and high pull-out resistance.
  • Load-bearing applications: Ideal for securing machinery bases, base plates, structural brackets, and permanent fixtures to concrete substrates.
  • Corrosion protection: Zinc plated finish offers corrosion resistance suitable for interior and protected exterior environments.
  • Installation guidance: Drill hole to correct diameter for the 5/8 inch Power Stud+ SD2, clean debris, insert fully, and tighten to specified torque to activate the wedge mechanism.
