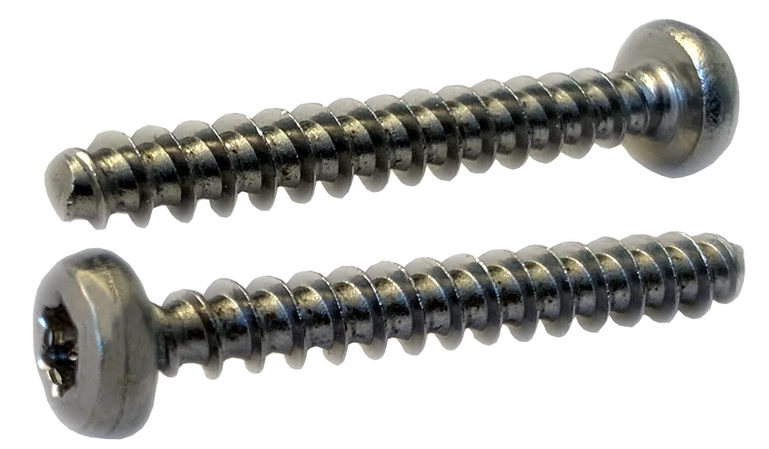

Pan Head Six Lobe Drive Thread Rolling Screw, 410 Stainless Steel
Roll over image to zoom in Click on image to zoom
Pan Head Six Lobe Drive Thread Rolling Screw, 410 Stainless Steel

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

#4-20 X 1/4" Thread Rolling Screws | Plastite 48-2 Alternative | Pan Head Six Lobe Drive | 410 Stainless Steel (5000 / Pkg.)

Mutual ScrewSKU: 0404LTP410KC
Price:
$514.75per 5000( $0.10 each)
Pieces 5000
Measurement type Imperial
Thread size #4-20
Diameter #4
Length 1/4"
Material 410 Stainless Steel
Grade 410
Finish Plain
Drive Six Lobe
Head style Pan
Threads per inch 20
Weight 6.0 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

These #4-20 x 1/4" thread rolling screws form their own mating threads as they are driven, using a tri-lobular shank that displaces material rather than cutting it. They are a direct alternative to Plastite 48-2 screws, built from 410 Stainless Steel, with a pan head and a six lobe drive.

  • Material and finish: 410 Stainless Steel
  • Head style: Pan
  • Drive: Six Lobe
  • Thread form: Tri-Lobe, Plastite 48-2 alternative
  • Thread size: #4-20
  • Length: 1/4"
  • Applications: Thread forming into untapped holes in metal assemblies

Rolling the thread instead of cutting it leaves no chips to clear and work-hardens the mating material, which raises pull-out strength and resistance to vibration loosening. Hole size matters: follow the manufacturer recommended pilot hole for the material and thickness being fastened.

Specifications

  • Product type: Thread Rolling Screws
  • Material: 410 Stainless Steel
  • Finish: Plain
  • Head style: Pan
  • Drive type: Six Lobe
  • Thread size: #4-20
  • Length: 1/4"
  • Threads per inch: 20
  • Thread form: Tri-Lobe
  • Measurement type: Imperial
  • Pack Quantity: 5000
