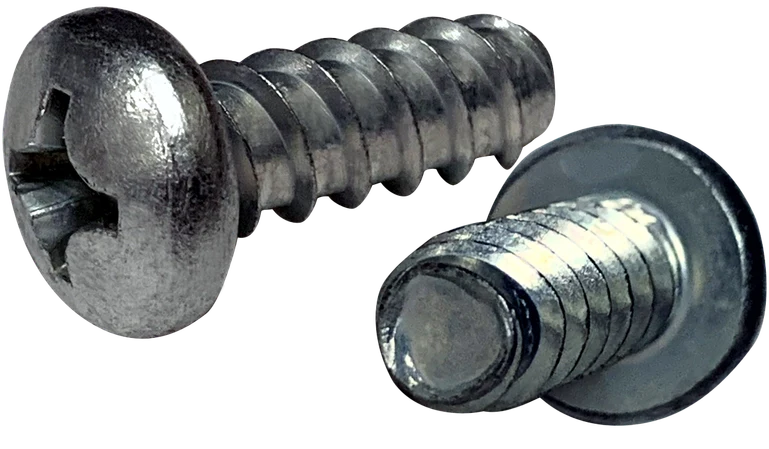

Pan Head Phillips Drive Thread Rolling Screw, Steel Zinc & Waxed
Roll over image to zoom in Click on image to zoom
Pan Head Phillips Drive Thread Rolling Screw, Steel Zinc & Waxed

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

#6-19 X 3/4" Thread Rolling Screws | Plastite 48-2 Alternative | Pan Head Phillips Drive | Steel Zinc & Waxed (10000 / Pkg.)

Mutual ScrewSKU: 0612LPPKC
Price:
$374.39per 10000( $0.04 each)
Pieces 10000
Measurement type Imperial
Thread size #6-19
Diameter #6
Length 3/4"
Material Steel
Finish Zinc & Waxed
Drive Phillips
Head style Pan
Threads per inch 19
Weight 32.0 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

These #6-19 x 3/4" thread rolling screws form their own mating threads as they are driven, using a tri-lobular shank that displaces material rather than cutting it. They are a direct alternative to Plastite 48-2 screws, built from Steel with a zinc & waxed finish, with a pan head and a phillips drive.

  • Material and finish: Steel Zinc & Waxed
  • Head style: Pan
  • Drive: Phillips
  • Thread form: Tri-Lobe, Plastite 48-2 alternative
  • Thread size: #6-19
  • Length: 3/4"
  • Applications: Thread forming into untapped holes in metal assemblies

Rolling the thread instead of cutting it leaves no chips to clear and work-hardens the mating material, which raises pull-out strength and resistance to vibration loosening. Hole size matters: follow the manufacturer recommended pilot hole for the material and thickness being fastened.

Specifications

  • Product type: Thread Rolling Screws
  • Material: Steel
  • Finish: Zinc & Waxed
  • Head style: Pan
  • Drive type: Phillips
  • Thread size: #6-19
  • Length: 3/4"
  • Threads per inch: 19
  • Thread form: Tri-Lobe
  • Measurement type: Imperial
  • Pack Quantity: 10000
