Description

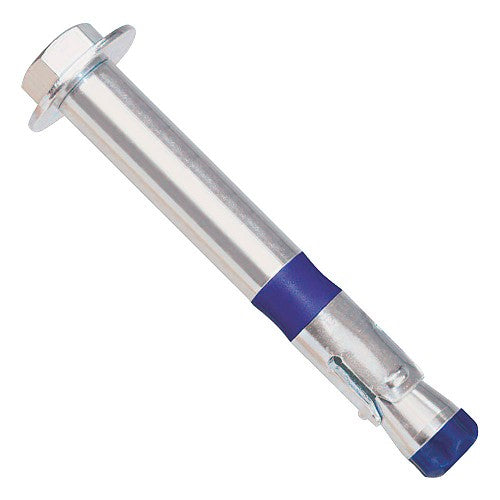

The Power-Bolt is a heavy duty, self-locking sleeve anchor that resists vibration and is removable. Expansion happens at two points in the hole: the cone pulls into the triple-tined sleeve, then the bolt threads into the cone and spreads its four sections. The bolt and cone stay locked together, and a flexible compression ring draws the fixture into full bearing.
Specs
- Size: 3/8" X 3-3/4"
- Flat Head
- Carbon Steel Zinc Plated
- Material: SAE Grade 5 bolt, AISI 1010 sleeve, AISI 12L14 cone, zinc plated (ASTM B633 Fe/Zn 5); nylon compression ring
- Base materials: Concrete, block, brick, stone
- DeWalt part number: 06981-PWR
Features
- Two-point expansion engages the base material deep in the hole
- Bolt and cone lock together to resist loosening under vibration
- Removable
- Compression ring draws the fixture tight to the base material
Applications
- Heavy duty anchoring in concrete, block, brick or stone
- Machinery and equipment anchorage
- Structural attachments that may need to be removed
Specifications from the DeWalt Power-Bolt+ Technical Guide rev C. Check DeWalt's published data for load values and installation details for your application.
