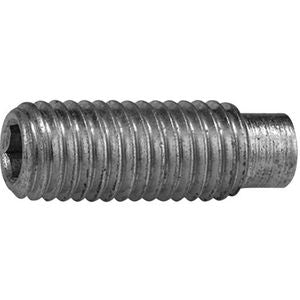

[100 PKG] Set Screws Socket Full Dog Point Point Alloy Steel 10/24 X 1/4

Improve precision in mechanical assemblies with our Set Screws Socket Full Dog Point in alloy steel. These 10/24 x 1/4 in set screws are designed for exact axial positioning, ensuring repeatable alignment of gears, pulleys, collars, and other components.

Key Features

• Full Dog Point design provides precise contact and locating accuracy for reliable axial positioning.
• Socket drive enables flush seating and easy tightening with standard hex keys.
• Alloy steel construction delivers high strength and durability for demanding applications.
• Thread size and length: 10-24 UNC thread with a 1/4 in length for compatibility with standard hardware.
• Versatile usage suitable for securing parts in fixtures, jigs, and assemblies requiring precise location.

Specifications

• Type: Set Screw Socket with Full Dog Point
• Material: Alloy Steel
• Thread Size: 10-24 UNC
• Length: 1/4 in
• Drive Type: Socket (hex)

Applications

• Locate and secure gears, pulleys, sprockets, and collars with high repeatability.
• Use in fixtures and jigs where precise component positioning is critical.
• Ideal for assemblies in machine shops, manufacturing lines, and prototyping setups.

Installation Tips

Use the appropriate hex key to avoid stripping and tighten to the recommended torque for your specific application. Ensure the dog point engages the mating surface to achieve proper contact and reliable positioning.
