M5-0.8 X 10mm Machine Screws | Pan Head | Six Lobe Drive | 18/8 Stainless Steel (1000/Pkg.)
Roll over image to zoom in Click on image to zoom
M5-0.8 X 10mm Machine Screws | Pan Head | Six Lobe Drive | 18/8 Stainless Steel (1000/Pkg.)

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

M5-0.8 X 10mm Machine Screws | Pan Head | Six Lobe Drive | 18/8 Stainless Steel (1000/Pkg.)

Mutual ScrewSKU: MI510MTP188KC
Price:
$144.64per 1000( $0.14 each)
Pieces 1000
Measurement type Metric (MM)
Thread size M5-0.8
Diameter M5
Length 10
Material 18/8 Stainless Steel
Grade 18/8
Finish Plain
Drive Six Lobe
Head style Pan
Threads per inch 1
Thread style Fully Threaded
Weight 6.0 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

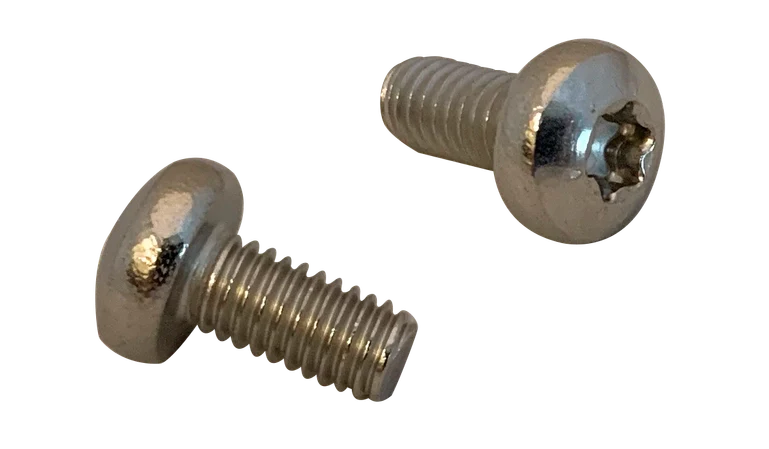

Machine Screws Six Lobe Pan 18/8 Stainless DIN 7045 M5-0.8 x 10 are designed for reliable, corrosion-resistant fastening in a wide range of applications. Crafted from 18/8 stainless steel (A2) and manufactured to DIN 7045 specifications, these screws combine strength, longevity, and a clean finish with a Torx-style six-lobe drive.

  • Material: 18/8 stainless steel (A2) for excellent corrosion resistance and durability.
  • Drive: Six-lobe drive provides higher torque transfer and reduced cam-out compared to standard cross drives.
  • Head type: Pan head offers a low-profile appearance with a broad bearing surface for even load distribution.
  • Dimensions: Metric thread M5 with 0.8 mm thread pitch, length 10 mm.
  • Standard: DIN 7045-compliant to ensure compatibility with other DIN fasteners and tools.
  • Best for: Electronics enclosures, machinery, automotive interiors, appliances, and panel mounting where corrosion resistance is important.

Choose these machine screws for dependable performance in demanding environments. Their stainless construction guards against rust and staining, while the six-lobe drive helps you achieve secure tightening with compatible Torx bits.
