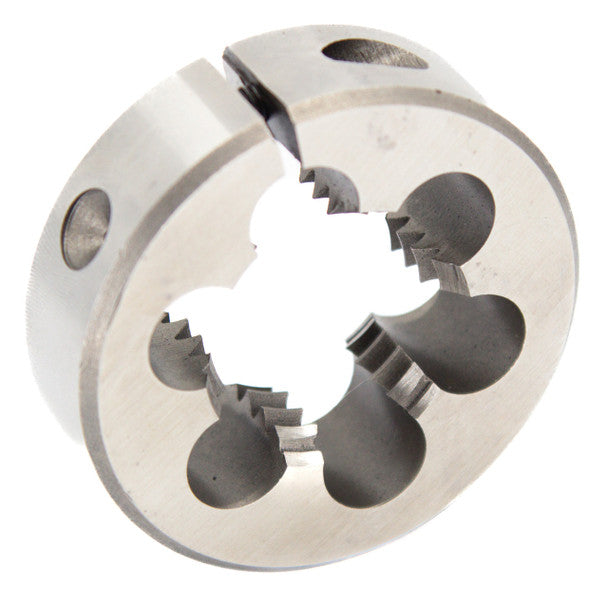

[1 PC] HSS Round Adjustable Die | M2.2 x .45 | 13/16" OD | Uncoated (Bright) | Metric
Roll over image to zoom in Click on image to zoom
[1 PC] HSS Round Adjustable Die | M2.2 x .45 | 13/16" OD | Uncoated (Bright) | Metric

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

[1 PC] HSS Round Adjustable Die | M2.2 x .45 | 13/16" OD | Uncoated (Bright) | Metric

Drill AmericaSKU: DWTMR1316-2.2X.45
Price:
$11.01 $21.60per 1( $11.01 each)
Pieces 1
Measurement type Metric
Size M2.2 x .45
Thread size M2.2
Material High Speed Steel
Finish Uncoated (Bright)
Outer diameter 13/16"
Shape Round
Threads per inch 0.45
Weight 1.0 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

Specs

  • Material: High Speed Steel (HSS)
  • Type: Round adjustable die
  • Thread size: M2.2 x.45
  • Outer diameter: 13/16 inch
  • Finish: Uncoated (Bright)
  • Adjustment method: Fine pitch screw moves the die halves apart or together
  • Chamfer design: Faces chamfered on both sides; one side with 2 to 3 thread chamfer, the opposite side with 1 to 1-1/2 thread chamfer
  • Slot design: Beveled slot permits adjustment when used with a holder; built-in adjusting screw can be removed for holder-based adjustment

Features

  • Wear life: HSS construction extends service life during repeated threading tasks
  • Dual chamfer capability: Enables starting threads from either side and allows close-to-shoulder threading on the opposite face
  • Precise adjustment: Fine pitch screw provides controlled widening or narrowing of the die gap
  • Holder-ready design: Beveled slot supports adjustment via a machine holder’s screws after removing the built-in screw
  • Finish and metric suitability: Bright uncoated surface paired with metric thread compatibility for compact machining

Physical

  • Construction: Round, two-piece adjustable die
  • Dimensions: Outer diameter 13/16 inch
  • Material: High Speed Steel
  • Finish: Uncoated (Bright)
  • Key design features: Beveled slot for in-holder adjustment; dual-face chamfer design on opposing faces
