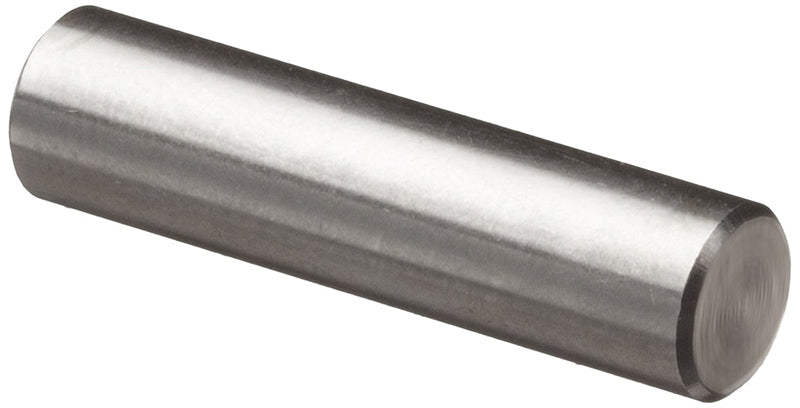

[100 PKG] Dowel Pins | Hardened | Alloy Steel | 5/16 X 5/8
Roll over image to zoom in Click on image to zoom
[100 PKG] Dowel Pins | Hardened | Alloy Steel | 5/16 X 5/8

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

[100 PKG] Dowel Pins | Hardened | Alloy Steel | 5/16 X 5/8

Mutual ScrewSKU: 31210PDBB
Price:
$86.63per 100( $0.87 each)
Pieces 100
Measurement type Inch
Diameter 5/16
Length 5/8
Material Alloy Steel
Finish Plain
Weight 1.36 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

Precision locating dowel pins crafted from hardened alloy steel provide durable, repeatable alignment in machine tools, fixtures, and assemblies. The hardened alloy steel construction delivers reliable wear resistance and dimensional stability in high-cycle environments.

Specs

  • Diameter: 5/16 inch
  • Length: 5/8 inch
  • Finish: Hardened
  • Material grade: Hardened alloy steel

Features

  • Precise, repeatable location: Enables fast setup of jigs, fixtures, and machine tool assemblies; reduces misalignment risk.
  • Wear resistance: Hardened alloy steel resists wear under repeated engagement, extending service life in high-cycle positioning.
  • Dimensional stability: Maintains tight tolerances during mounting, cycle changes, and repeated use.
  • Hole pattern compatibility: Designed for standard hole patterns; select press-fit for retention or slip-fit for easy removal based on assembly requirements.
  • Ideal applications: Tooling fixtures, automation frames, and production lines requiring fixed, repeatable locating pins.
  • Practical installation tips: Validate hole tolerance before installation. Use appropriate gauges to confirm fit. Handle pins and receptacles carefully to avoid damage. Consider lubrication or anti-seize for high-cycle operations if applicable.
