[1 PC] CS NPT Pipe Tap | 1"-11-1/2 NPT | 3-3/4" OAL | Uncoated (Bright) | Inch
Roll over image to zoom in Click on image to zoom
[1 PC] CS NPT Pipe Tap | 1"-11-1/2 NPT | 3-3/4" OAL | Uncoated (Bright) | Inch

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

[1 PC] CS NPT Pipe Tap | 1"-11-1/2 NPT | 3-3/4" OAL | Uncoated (Bright) | Inch

Drill AmericaSKU: DWTPT1INCH
Price:
$20.94 $41.06per 1( $20.94 each)
Pieces 1
Measurement type Inch
Thread size 1"
Diameter 1
Length 3-3/4"
Material Carbon Steel
Finish Uncoated (Bright)
Flute length 1-3/4"
Shank size 1.125"
Threads per inch 11-1/2
Weight 1.0 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

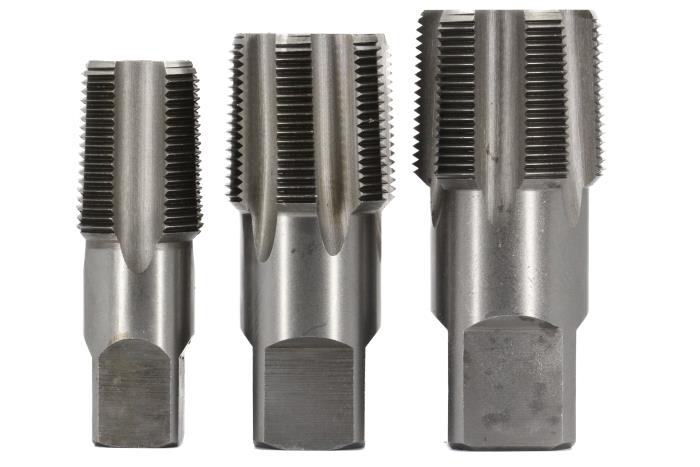

This carbon steel NPT pipe tap is designed to cut internal NPT threads for one inch nominal pipe. Bright uncoated finish; overall length is three and three quarters inches.

Specs

  • Quantity: 1 piece
  • Material: Carbon Steel (CS)
  • Type: NPT pipe tap
  • Nominal pipe size: 1 inch
  • NPT thread pitch: 11.5 threads per inch
  • Overall length: 3 and 3/4 inches
  • Finish: Uncoated (Bright)

Features

  • Internal threading capability: cuts NPT internal threads to accept 1 inch NPT fittings
  • Rigid carbon steel construction: supports precise tapping under typical metalworking loads
  • Bright uncoated finish: standard surface for tooling, enabling straightforward handling and inspection
  • Extended reach: 3 and 3/4 inch overall length provides stability when tapping deeper holes
  • Specific thread specification: 1 inch nominal size with 11.5 threads per inch for compatible NPT assemblies

Physical

  • Overall length: 3 and 3/4 inches
  • Material: Carbon Steel
  • Finish: Uncoated (Bright)
  • Finish-related notes: bare steel surface typical for inspection and use in standard workshop environments
