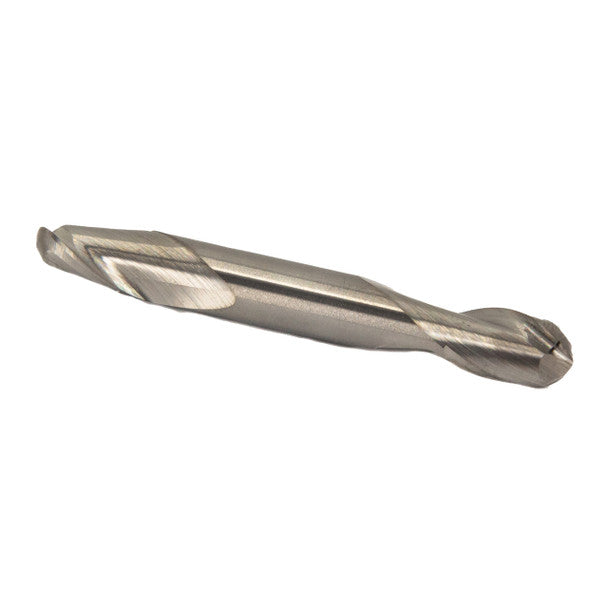

1/16" X 1/8" 2 Flute Double End Stub Ball End End Mill | Solid Carbide | 1/8" Shank | MMO1/16-2FDE-ST-BN
Roll over image to zoom in Click on image to zoom
1/16" X 1/8" 2 Flute Double End Stub Ball End End Mill | Solid Carbide | 1/8" Shank | MMO1/16-2FDE-ST-BN

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

7/64" X 3/16" 2 Flute Double End Stub Ball End End Mill | Solid Carbide | 1/8" Shank | MMO7/64-2FDE-ST-BN

Drill AmericaSKU: MMO7/64-2FDE-ST-BN
Price:
$23.18per 1( $23.18 each)
Pieces 1
Measurement type Inch
Diameter 7/64"
Length 1-1/2"
Material Carbide
Finish Uncoated (Bright)
Cut style Center Cutting
Flute length 3/16"
Number of flutes 2
Number of milling ends 2
Shank 1/8" Shank
Shank size 1/8"
Shape Ball
Size 7/64"
Weight 2.98 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

Industrial-grade end mill designed for precision 3D contouring and cavity milling. Double-end stub ball end geometry provides dual cutting surfaces for extended tool life and productivity.

Specs

  • Diameter: 7/64"
  • Cutting Length: 3/16"
  • Shank Diameter: 1/8"
  • Flutes: 2
  • End Geometry: Ball End
  • Material Grade: Solid Carbide
  • End Mill Type: Double End

Features

  • Ball End Geometry: Produces contoured surfaces with smooth finishes for complex shapes in molds, dies, and automotive components.
  • Double End: Provides two usable ends, effectively extending tool life when used in rotating operations.
  • Stub Length: High rigidity and reduced deflection in small-diameter milling to improve dimensional accuracy.
  • Flutes: 2 flutes designed for efficient material removal with balanced chip evacuation in soft to moderate-hard materials.
  • Shank: 1/8" diameter compatible with standard collets and end mill holders in CNC and manual machines.
  • Material: Solid Carbide offers high hardness, wear resistance, and long tool life under elevated cutting temperatures.
  • Applications: Mold making, die work, aerospace component finishing, automotive component profiling, and prototype machining.
