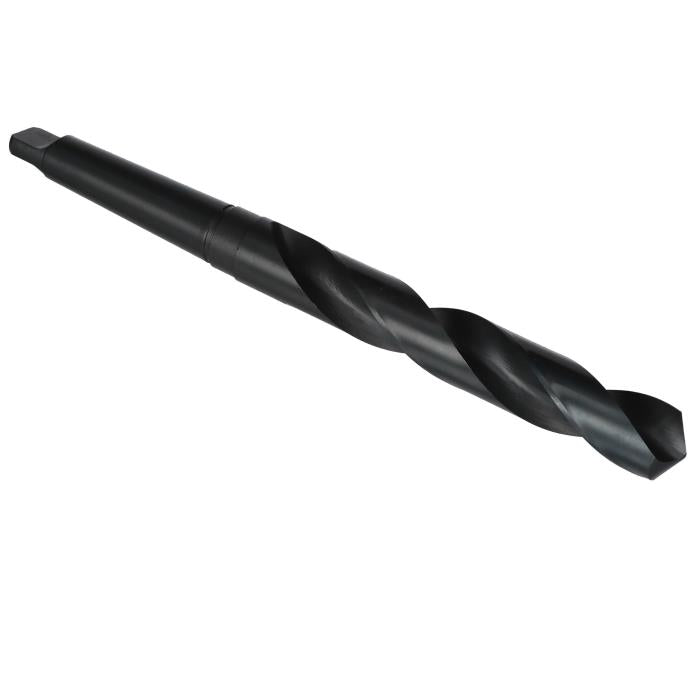

35/64" Taper Shank Drill Bit | HSS | 1MT | Undersized Shank | DWDTS35/64-1MT
Roll over image to zoom in Click on image to zoom
35/64" Taper Shank Drill Bit | HSS | 1MT | Undersized Shank | DWDTS35/64-1MT

Image may not reflect complete product dimensions and specifications. Please call to confirm any questions.

35/64" Taper Shank Drill Bit | HSS | 1MT | Undersized Shank | DWDTS35/64-1MT

Drill AmericaSKU: DWDTS35/64-1MT
Price:
$19.30 $35.46per 1( $19.30 each)
Pieces 1
Measurement type Inch
Diameter 35/64"
Length 8-3/4
Material High Speed Steel
Finish Black Oxide
Flute length 4-7/8
Point type Conventional
Shank Taper Shank
Shank size 1MT
Size 35/64
Weight 1.0 lb

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to https://www.P65Warnings.ca.gov.

Description

This is a single-piece High-Speed Steel (HSS) drill bit with an undersized MT1 taper shank for MT1 tooling. It is designed to seat reliably in tight MT1 tool holders and minimize binding, while enabling direct mounting in MT1 spindle sockets or MT1-compatible chucks.

Specs

  • Diameter: 35/64 in (0.546875 in)
  • Material: High-Speed Steel (HSS)
  • Shank: Undersized MT1 taper shank (Morse Taper 1)
  • Taper: MT1
  • Quantity: 1 piece

Features

  • HSS construction supports drilling through steel, aluminum, and common alloys.
  • Undersized shank reduces binding and improves seating in MT1 tool holders.
  • Single-piece design provides easy replacement in MT1 tooling setups.
  • MT1 taper shank enables direct mounting into MT1 spindle sockets or MT1-compatible chucks.
  • Best used in drill presses or milling machines configured for MT1 tooling.
  • Not suitable for straight-shank systems; requires MT1 interface.

Physical

  • Diameter: 35/64 in (0.546875 in)
  • Shank: Undersized MT1 taper
  • Taper: MT1
  • Material: High-Speed Steel (HSS)
  • Quantity: 1 PC
