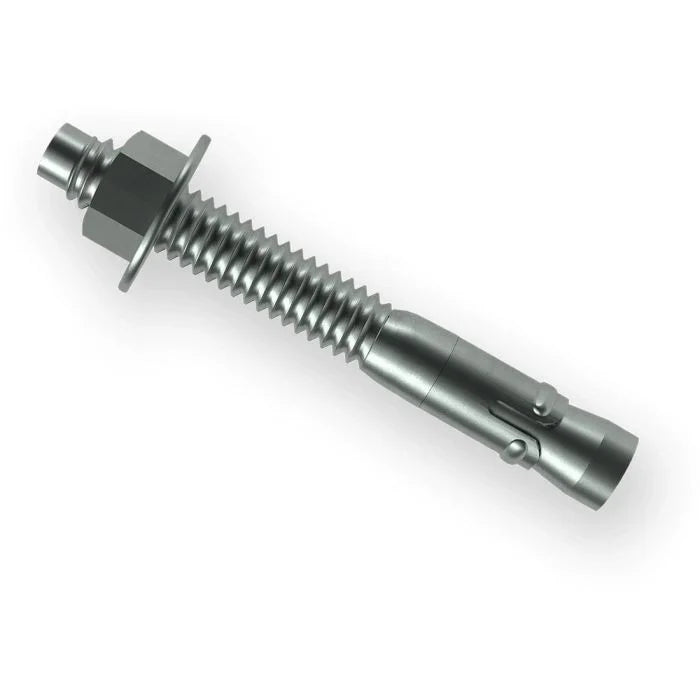

[10 PKG] Wedge Anchors Ankr-TITE Carbon Steel Zinc Plated 5/8 X 12

Meet the Wedge Anchors Ankr-TITE Carbon Steel Zinc Plated 5/8 X 12, a heavy-duty fastening solution designed for secure, permanent installations in concrete and masonry. Crafted from carbon steel with a durable zinc plating, these anchors deliver outstanding strength and corrosion resistance for challenging environments. With a 5/8 in diameter and 12 in length, they’re versatile for a wide range of equipment mounting and structural connections.

Key Features

• Material: Carbon steel for high strength and reliability
• Finish: Zinc plating for improved corrosion resistance
• Design: Wedge anchor (Ankr-TITE) for secure expansion in concrete and masonry
• Size: 5/8 in diameter, 12 in length

Applications

• Ideal for mounting machinery, equipment, handrails, and structural connections
• Anchor machinery, equipment, and structural components to concrete slabs, footings, and poured masonry
• Secure railings, brackets, and mounting brackets in industrial and commercial settings
• Permanent connections requiring strong holding power in solid substrates

Installation Overview

For best results, follow the standard wedge anchor installation procedure: drill a hole to the recommended diameter and depth for the substrate, clean the hole of debris, insert the anchor, and tighten the installation bolt to activate the wedge mechanism and achieve full expansion. Ensure proper embedment length and torque per applicable specifications to maximize holding strength and safety.

Specifications

• Diameter/Length: 5/8 in diameter, 12 in length
• Material: Carbon steel
• Finish: Zinc plated
• Type: Wedge anchor (Ankr-TITE)
